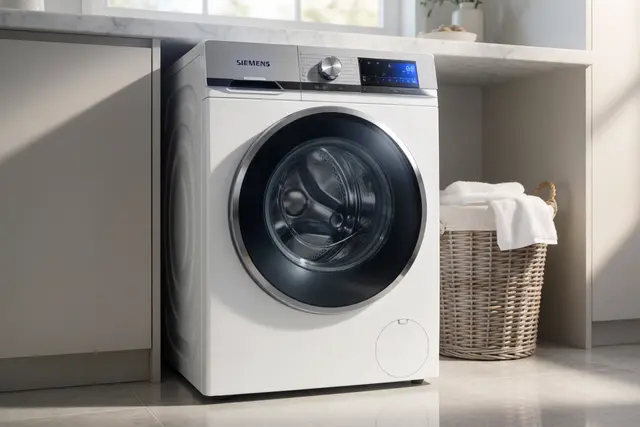

Siemens Washing Machine Service

Close but not identical — both are built by BSH on shared platforms (motors, drainage architecture, sensing), with different feature sets and cosmetics. Technically, our BSH-platform training covers both; parts interchange more often than not.

Siemens uses the E-code family, including E18-style drain timeouts shared with Bosch — see our E18 decode which applies to Siemens platforms, and the full error-codes library for the rest.

Yes — the full iQ series, including models with iQdrive (BSH's brushless motor) and speed-perfect options. Drive, drainage, door and electronics work all performed to BSH spec with genuine parts.

Mechanically they're close siblings on the BSH platform — drums, pumps, interlocks and heaters overlap heavily, with iQ500 adding programs, display features and options like speedPerfect. Diagnosis is shared knowledge and most fast-moving parts are common, while display modules and program boards differ per model. We always verify the E-Nr from the data plate before ordering any part.

The brushless iQdrive removes carbon-brush wear but adds a rotor position sensing path and a drive module on the control side — so a no-spin Siemens is tested at position feedback, connectors and drive electronics before the motor itself is suspected. The motor windings are typically the last thing to fail on this platform. See our motor diagnosis page.

E18 is a drain timeout (water not leaving), E17 a fill timeout (water not arriving) — opposite problems with opposite culprits. E18 points to the pump trap, drain impeller or pressure chamber; E17 to inlet meshes, valve coils or the supply itself. Our E18 guide covers the drain side in detail, and the error library maps the rest of the E-family.

BSH interlocks hold the latch through a cooldown period after heated cycles — by design. Beyond that window, the lock is usually held by a stuck interlock solenoid, residual water keeping the pressure sensor busy, or the lock circuit on the module. We test the interlock coil and release circuit rather than forcing the door; see our door-release guide.

High-spin programs expose damping limits — the shock absorbers and anti-vibration chassis work fine at low spin but reveal wear at 1,200 rpm and above, where the unbalance sensor also intervenes more aggressively. If redistribution doesn't help, we test damper compression and spring seating. See our vibration page and the unbalance decode.

Yes, occasionally — the chamber and its tube collect detergent sludge, corrupting water-level readings and producing fill faults, overfills or premature drain timeouts that mimic pump problems. Cleaning the chamber and checking tube integrity is standard diagnostic practice on the BSH platform before any pump or valve is replaced. It's one of the highest-value checks we do on these machines.

Parts sourced through the BSH channel come with the part warranty stated on your invoice, separate from any Siemens machine warranty still running on the unit — the two cover different things, and we record both trails on the job sheet. For discontinued models, cross-referenced BSH-group parts are declared as such. Clarity up front avoids warranty disputes later.
